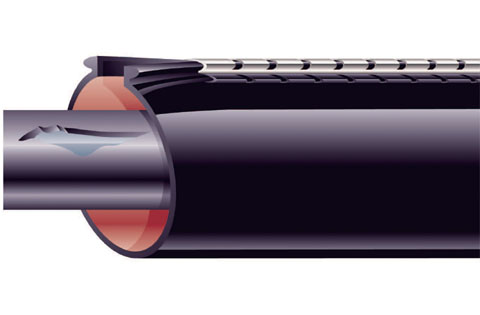

ApplIcatIon:Adhesive lined, heat shrinkable wraparound sleeve, that is closed with a flexible Stainless-steel locking channel. used for general re-jacketing and sealing applications, Protection of damaged cable or repair of cable joints. installs easily in splice. Applications that are longer in length.。
产品分类
产品目录PDF
1. >3:1 shrink ratio 2. Provides water tight seal upon recovery 3. Offers mechanical durability 4. Application procedure is quick, simple and clean 5. Covered with the monochromatic paint that changes upon correct shrink temperature 6. Sleeve and channel can be cut to suit short application requirements 7. Steel channel provides permanent closure system 8. Installation temperature range: -15°C to 45°C
1. Cable jacket repair 2. Primary insulation cover on low voltage cable
| Normal size (mm) | Size | ||
|---|---|---|---|
| Expanded id (mm) | Recovered id (mm) | Length (mm) | |
| RCRS-40/12 | 40 | 12 | 300~1000 |
| RCRS-50/15 | 50 | 15 | 300~1000 |
| RCRS-60/18 | 60 | 18 | 300~1000 |
| RCRS-70/22 | 70 | 22 | 300~1000 |
| RCRS-85/25 | 85 | 25 | 300~1000 |
| RCRS-100/30 | 100 | 30 | 300~1000 |
| RCRS-135/38 | 135 | 38 | 300~1000 |
| RCRS-175/55 | 175 | 55 | 300~1000 |
| RCRS-210/65 | 210 | 65 | 300~1000 |
