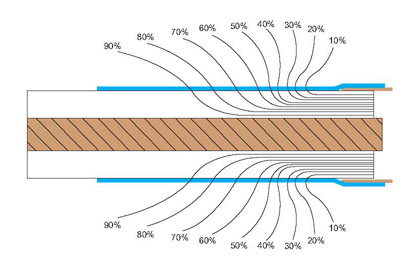

特点:应用于高压电力电缆的附件中，起到应力控制的作用。
ApplIcatIon:RSCT is made from radiation cross-linked polyolefin material, The specially designed chemical formulation and carefully controlled manufacture technology effectively release the high electrical stress present at insulation screen in termination and joint of power cable from 11kV to 36kV.
产品分类
产品目录PDF
| 测试项目Property | 测试方法Test method | 典型数据Typical data |
|---|---|---|
| 抗拉强度Tensile strength (Mpa) | ASTM D 2671 | ≥10 |
| 断裂伸长率Elongation at break (%) | ASTM D 2671 | ≥300 |
| 纵向收缩率Longitudinal shrinkable ratio (%) | ASTM D 2671 | ±5 |
| 体积电阻率Volume resistance (Ω/cm) | ASTM D 2303 | >1×1014 |
| 击穿强度Breakdown strength (kV/mm) | IEC 243 | ≥20 |
| 径向收缩率Radial shrinkable ratio | ASTM D 2671 | 2.5:1 |
| 介电常数Dielectric constant (ε) | IEC 250 | 2.5 max |
| Normal size (mm) | AS supplied (mm) | After recovered (mm) | Length (m) | Tubing shape | |
|---|---|---|---|---|---|
| Inside diameter | Inside diameter | Wall thickness | |||
| RSCT-26/10 | >26 | 10 | 1.8 | 100 or 1000 | ○ |
| RSCT-30/12 | >30 | 12 | 2.0 | 100 or 1000 | ○ |
| RSCT-35/14 | >35 | 14 | 2.2 | 100 or 1000 | ○ |
| RSCT-40/16 | >40 | 16 | 2.4 | 100 or 1000 | ○ |
| RSCT-50/20 | >50 | 20 | 2.5 | 100 or 1000 | ○ |
| RSCT-60/25 | >60 | 25 | 2.7 | 100 or 1000 | ○ |
| RSCT-70/30 | >70 | 30 | 2.8 | 100 or 1000 | ○ |
| RSCT-80/35 | >80 | 35 | 3.0 | 100 or 1000 | ○ |
