Cast Resin Straight Through Joint (RCRJ)

ApplIcatIon:Resin filled straight joint for cable with XLPE, PVC EPR. PUR cast resin technology was especially developed to seal and protect power, signal and telephone cable. This new generation of two component cast resin has been developed for the most demanding environments and circumstances, assuring only the highest quality. Quick setting properties in humid or even cold conditions make it a fast and reliable solution.

选型尺寸

• Be suitable for low voltage cable • Adopt the filled of resins-pour install simply conveniently and express • Sup excellent effect water proof. alkali-resistant • Thin-fluid after mixing excellent adhesive strength on metal and synthetic material • Resistant against UV-rays and chemical influences • Cast Moulds made of robust and high-quality transparent synthetic material • The cast resin will be delivered in a transparent mixing bag after removing the protective bag and the separator the 2 components flow together and must be mixed for about 3~4 minutes before filling into the mould cast joint.

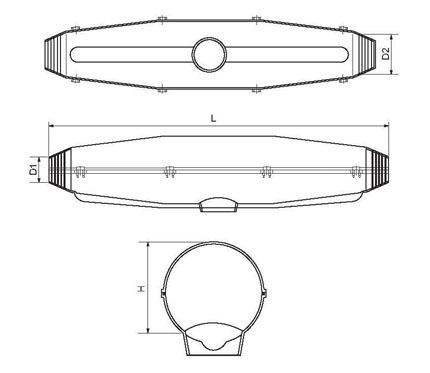

TypeCable size (mm2)L(mm)H(mm)D1(mm)D2(mm)
RCRJ-14×1.5-1620036628
RCRJ-24×25-50350552038
RCRJ-34×70-95400752644
RCRJ-44×120-1855301103560
