Insulated protection for power equipment is the essential installed product of the power equipment connect terminate of the transformer and lightning arrester and the outside switchgear. It is the new product recommended by the nation. It is effective to protect the original bare power equipment connect terminate from the power turnoff and electric shock, which is caused by the reasons such as personal contact, stolen power, small animal or other things contact, moist flash salt fog and chemical corruption. As so big economic damage can be avoided.。

订货代号	配用金具名称	型号	接线方式	导线数
Order code	Name of the assembled fitting	Mode	Connecting type	Nummber of the conductor

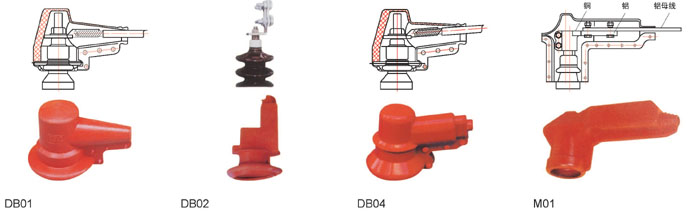

DB01	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB01A	横the lateral	1根One piece
DB02	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB02C	竖the normal	1根One piece
DB04	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB04B	斜the lenaed	1根One piece
M01	铜铝排Bus-bar	铜铝排Bus-bar	横the lateral	1根One piece

订货代号	配用金具名称	型号	接线方式	导线数
Order code	Name of the assembled fitting	Mode	Connecting type	Nummber of the conductor

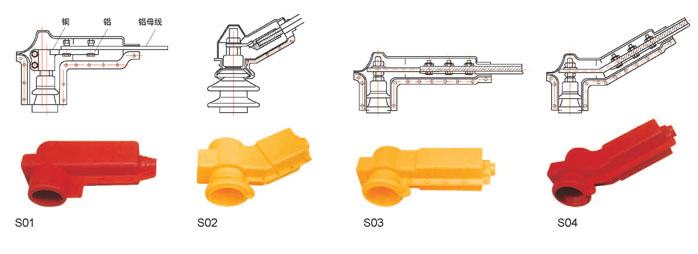

S01	1,2号设备线夹 0° No.1,2 equipment clip 0°	RC 10-S01A	横the lateral	1x35²～240²
S02	1,2号设备线夹30° No.1,2 equipment clip 30°	RC 10-S02B	斜the lenaed	1x35²～240²
S03	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S03A	横the lateral	1x35²～240²
S04	3,4号设备线夹30° No.3,4 equipment clip 30°	RC 10-S04B	斜the lenaed	1x35²～240²

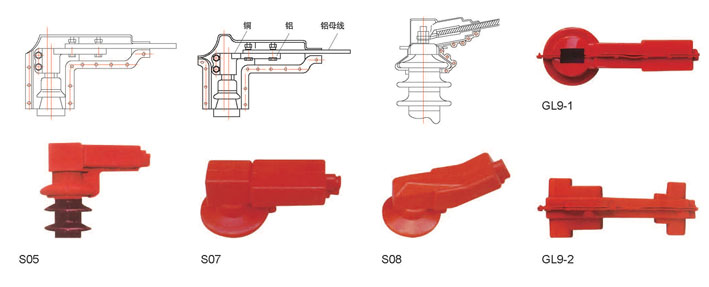

S05	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S05A	横the lateral	1x35²～240²
S07	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S07A	横the lateral	1x35²～240²
S08	3,4号设备线夹30° No.3,4 equipment clip 30°	RC 10-S08B	斜the lenaed	1x35²～240²
GL9-1	隔离开关Insulated switch	RC 10-GL9-1A	横the lateral	1x35²～240²
GL9-2	隔离开关Insulated switch	RC 10-GL9-2A	横the lateral	1x35²～240²

订货代号	配用金具名称	型号	接线方式	导线数
Order code	Name of the assembled fitting	Mode	Connecting type	Nummber of the conductor

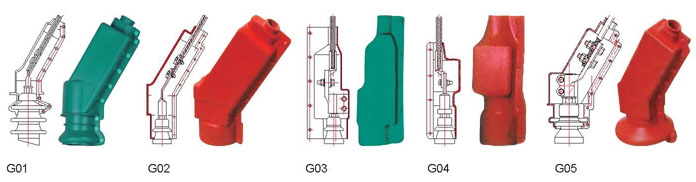

G01	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G01B	斜the lenaed	1x35²～240²
G02	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G02B	斜the lenaed	1x35²～240²
G03	单孔油变线夹 0° Oil-immersed transformer clip of the hole 0°	RC 10-G03C	竖the normal	1x35²～240²
G04	闭口油变线夹Oil-immersed transformer clip of M16 and below	RC 10-G04C	竖the normal	1x35²～240²
G05	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G05B	斜the lenaed	1x35²～240²

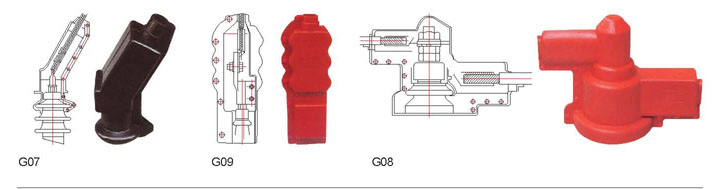

G07	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G07B	斜the lenaed	1x35²～240²
G08	计量箱三柱Three poles of measuring box	RC 10-G08A	横the lateral	1x35²～240²
G09	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-G09C	竖the normal	1x35²～240²
DL3-1	跌落式开关Drop-out switch	RC 10-GL3-1A	横the lateral	1x35²～240²
DL3-2	跌落式开关Drop-out switch	RC 10-GL3-2B	横the lateral	1x35²～240²
DL4-1	跌落式开关Drop-out switch	RC 10-GL4-1A	横the lateral	1x35²～240²5
DL4-2	跌落式开关Drop-out switch	RC 10-GL4-2B	横the lateral	1x35²～240²

订货代号	配用金具名称	型号	接线方式	导线数
Order code	Name of the assembled fitting	Mode	Connecting type	Nummber of the conductor

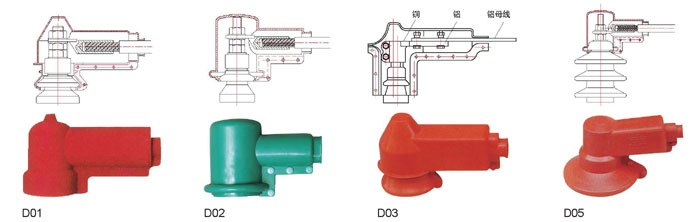

D01	接线端子Connecting terminal	RC 10-D01A	横the lateral	1x35²～240²
D02	接线端子Connecting terminal	RC 10-D02A	横the lateral	1x35²～240²
D03	接线端子Connecting terminal	RC 10-D03A	横the lateral	1x35²～240²

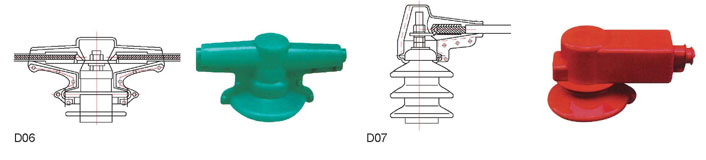

D06	接线端子Connecting terminal	RC 10-D05A	横the lateral	1x35²～240²
D07	接线端子Connecting terminal	RC 10-D06A	横the lateral	1x35²～240²
D07	接线端子Connecting terminal	RC 10-D07A	横the lateral	1x35²～240²

系列	订货代号	配用设备名称	型号
Seires	Order code	Name of the assembled fitting	Mode
	D01	接线端子Connecting terminal	RC 10-D01A
	D02	接线端子Connecting terminal	RC 10-D02A
D	D03	接线端子Connecting terminal	RC 10-D03A
	D05	接线端子Connecting terminal	RC 10-D05A
	D06	接线端子Connecting terminal	RC 10-D06A
	D07	接线端子Connecting terminal	RC 10-D07A
	S01	1,2号设备线夹 0° No.1,2 equipment clip 0°	RC 10-S01A
	S02	1,2号设备线夹30° No.1,2 equipment clip 30°	RC 10-S02B
	S03	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S03A
S	S04	3,4号设备线夹30° No.3,4 equipment clip 30°	RC 10-S04B
	S05	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S05A
	S07	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-S07A
	S08	3,4号设备线夹30° No.3,4 equipment clip 30°	RC 10-S08B
	G01	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G01B
	G02	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G02B
	G03	单孔油变线夹 0° Oil-immersed transformer clip of the hole 0°	RC 10-G03C
G	G04	闭口油变线夹Oil-immersed transformer clip of M16 and below	RC 10-G04C
	G05	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G05B
	G07	3,4号设备线夹 90° No.3,4 equipment clip 90°	RC 10-G07B
	G08	计量箱三柱Three poles of measuring box	RC 10-G08A
	G09	3,4号设备线夹 0° No.3,4 equipment clip 0°	RC 10-G09C
M	M01	铜铝排Bus-bar	RC 10-M01A
	DB01	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB01A
DB	DB02	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB02C
	DB04	氧化锌避雷器Zinc oxide lightning arrester	RC 10-DB04B
	DL3-1	跌落式开关Drop-out switch	RC 10-GL3-1A
DL	DL3-2	跌落式开关Drop-out switch	RC 10-GL3-2B
	DL4-1	跌落式开关Drop-out switch	RC 10-GL4-1A
	DL4-2	跌落式开关Drop-out switch	RC 10-GL4-2B
GL	GL9-1	隔离开关Insulated switch	RC 10-GL9-1A
	GL9-2	隔离开关Insulated switch	RC 10-GL9-2A

注：1. 订货时请按上表订货代号或型号选用。 2. 特殊产品规格和颜色可根据用户要求生产。 Note: 1. Order by the code or mode of the above table. 2. Special specifications and colors can be produced by the requirments of the clients.
