热缩电缆封帽

Heat Shrinkable Cable End Caps (REC)

应用：热缩封帽适用于电力电缆或通信电缆的末端防水，绝缘和防护处理。端口涂有高性能的热熔胶，加热时封帽可以收缩，同时胶水融化，紧密的粘接在电缆等的表层，起到优秀的防水、绝缘和防护效果。

Application： REC offers an economical means of sealing the end of power cable with a completely watertight seal. The internal surface of the end cap has a layer of spiral coated hot melt adhesive, which retains its flexible properties after recovery. REC is recommended for application both in open air and on underground power distribution cables with PVC. Lead or XLPE sheaths.

产品分类

PRODUCT CLASSIFICATION

产品目录PDF

News Center

产品目录PDF下载

Adobe Reader PDF阅读器下载

技术数据Technical Data:

• Effectively offering protection against oxidation, ozone, UV-radiation etc. • Coated with hot melt adhesive to ensure environment seal • Easily to fit into the cable end • Minimum fully shrink temperature: 120°C

测试项目Property	测试方法Test method	典型数据Typical data
工作温度Operating temperature (°C)	IEC 216	-55 to +110
抗拉强度Tensile strength (Mpa)	ASTM D 638	≥14
断裂伸长率Elongation at break (%)	ASTM D 638	>400
密度Density (g/cm3)	ASTM D 792	1.05
热老化断裂伸长率Heat aging tensile strength ultimate elongation	150°C/168hrs	300
击穿强度Dielectric strength (kV/mm)	IEC 243	15
体积电阻率Volume resistance (Ω.cm)	IEC 93	>1014

技术数据Technical Data:

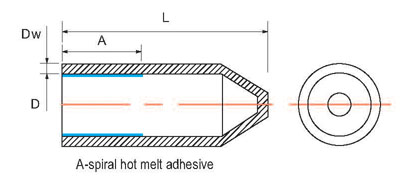

Normal size(mm)	AS supplied(mm)	After recovered(mm)				Cable
	D(Min)	D(Max)	A(10%)	L(10%)	Dw(5%)	diameter(mm)
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	R90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	40	2.2	90-150
REC-12/4	160	4.0	70	150	4.0	90-150
