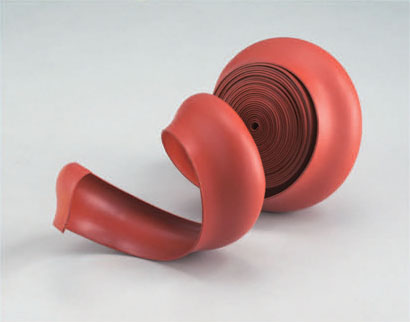

产品应用：10-35kV以下的电气绝缘保护，10-35kV母线排绝缘保护，适用于各种不规则的产品绝缘保护。特殊形状螺旋热缩绝缘保护带，适用于35kV及以下电压场合，更加易于安 装，容易剥离，可配合其它绝缘产品
Application：Below 10-35kV electrical insulation protecting，10-35kV voltage bus bar insulation protecting，Applies to all kinds of irregular the product insulation protection The special shape of spiral heat shrink insulation tape, suitable for 35kV and below voltage applications, easy to construct and install, be prone to peel off. Can be cooperate with other insulation materials
产品分类
产品目录PDF
双层，外层将加热后收缩，内层胶粘剂熔化后的密封性能好，抗紫外线和优异的电气绝缘，耐燃性 Double layer, outside layer will be shrink after heating while the inside layer adhesive will be melt and sealing well. UV-resistance and defend aging. outstanding electrical insulated, flammability.
清洁被使用产品表面，确保没有灰尘及油污在表面，用加热枪缓慢加热产品的表面，一定要均匀的加热产品周围。 Clean and make sure there is no dust on the wrap part. use the heating guy to heat the inside layer of the tape and then wrap around on the article. after cover the article, use the heating gun to make it hot equality..
| Property | Typical data |
|---|---|
| Tensile strength (kN/M) | 1.4 |
| Elongation at break (%) | 700 |
| Volume resistivity (Ω/mm) | 1×106 |
| Dielectric strength (kV/mm) | 33 |
| Service temperature (°C) | -30 to +90 |
| Type | Thickness (mm) | Length (m) | Width (mm) | Membrane Color | Packing |
|---|---|---|---|---|---|
| RC23 | 0.76 | 3, 5, 9.1, 10 | 19, 25, 38, 50 | Milky white | 38mm plastic core |
| Individually shrink-wrapped rolls |
