Armour Clamp (RAC)

Application：It is used for the earthing system of low voltage and medium voltage cable application.。

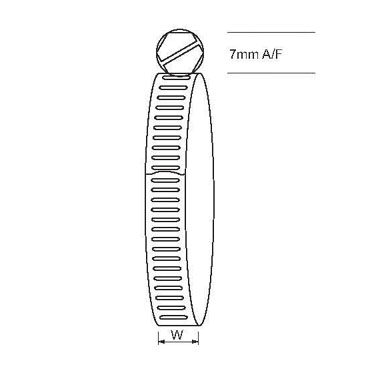

Features：All edges are smoothed and chamfered. Screw head is hexagon as shown in the drawing.

• The clip is reusable.

产品分类

PRODUCT CLASSIFICATION

产品目录PDF

News Center

Product Dimensions

Type	Detail description	of support ring	size (mm)
	Application range	W±0.1	Thickness
RAC-1	16-25	12	0.8
RAC-2	18-32	12	0.8
RAC-3	21-38	12	0.8
RAC-4	27-51	12	0.8
RAC-5	44-67	12	0.8
RAC-6	52-76	12	0.8
RAC-7	65-89	12	0.8
RAC-8	78-100	12	0.8
RAC-9	90-115	12	0.8
RAC-10	115-140	12	0.8
