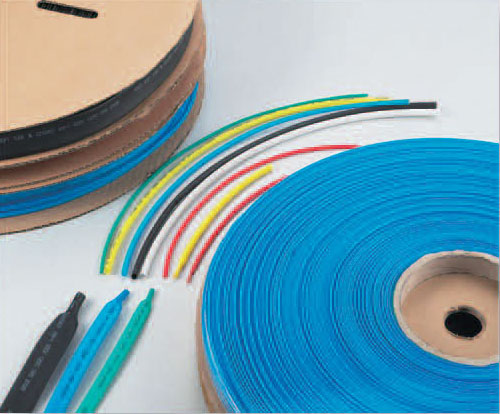

低温热缩套管

Thin Wall Heat Shrinkable Tubing (RDRS 2X)

产品应用：热缩套管具有低温收缩、柔软阻燃、绝缘防蚀等功能，广泛应用于电线的连接、标志和结束，金属管、棒的防锈防蚀、天线保护等。

Application：The fire resistant heat shrinkable tubing are provided with the function of low-temperature contraction, fiexibility, fire resistance, insulation and corrosion prevention and so on. These are widely used for connecting, marking and strapping the wire and protect the metal tubes, bars and antnna fram rusting and corroding.

产品分类

PRODUCT CLASSIFICATION

产品目录PDF

News Center

产品目录PDF下载

Adobe Reader PDF阅读器下载

技术数据Technical Data:

Standard colors: Black, Red, Green, Yellow, Blue, White, Clear • Special colors are available on request

测试项目Property	测试方法Test method	典型数据Typical data
工作温度Operating temperature (°C)	UL 224	-50 to +125
抗拉强度Tensile strength (Mpa)	ASTM D 2671	≥14
断裂伸长率Elongation at break (%)	ASTM D 2671	>400
纵向收缩率Longitudinal shrinkable ratio (%)	UL 224	0±5
偏壁率Eccentricity (%)	ASTM D 2671	<30
热老化断裂伸长率Heat aging tensile strength ultimate elongation	158°C/168hrs	≥300
阻燃率Flammability	VW-1	Pass
体积电阻率Volume resistance (Ω.cm)	IEC 93	>1014
铜稳定性Copper stability	UL 224	Pass

选型尺寸Product Dimensions:

Normal size (mm)	AS supplied(mm)		After recovered(mm)		Standar
	Inside Diameter(Min)	Wall Thickness(Max)	Inside Diameter(Max)	Wall Thickness(Max)	Length (m/spool)
1.0/0.5	1.0	0.175±0.05	0.5	0.35±0.08	200
1.5/075	1.5	0.175±0.05	0.8	0.35±0.08	200
2.0/1.0	2.0	0.19±0.05	1.0	0.38±0.08	200
2.5/1.25	2.5	0.20±0.05	1.3	0.40±0.08	200
3.0/1.5	3.0	0.20±0.05	1.5	0.40±0.10	200
3.5/1.75	3.5	0.20±0.05	1.8	0.40±0.10	200
4.0/2.0	4.0	0.225±0.05	2.0	0.45±0.10	200
5.0/2.5	5.0	0.225±0.05	2.5	0.45±0.10	100
6.0/3.0	6.0	0.225±0.05	3.0	0.45±0.10	100
7.0/3.5	7.0	0.225±0.05	3.5	0.45±0.10	100
8.0/4.0	8.0	0.225±0.05	4.0	0.45±0.10	100
9.0/4.5	9.0	0.25±0.05	4.5	0.50±0.10	100
10.0/5.0	10.0	0.25±0.05	5.0	0.50±0.10	100
11.0/5.5	110	0.25±0.05	5.5	0.50±0.10	100
12.0/6.0	12.0	0.25±0.05	6.0	0.50±0.10	100
13.0/6.5	13.0	0.25±0.05	6.5	0.50±0.10	100
14.0/7.0	14.0	0.275±0.05	7.0	0.55±0.10	100
15.0/7.5	15.0	0.275±0.05	7.5	0.55±0.10	100
16.0/8.0	16.0	0.30±0.05	8.0	0.60±0.10	100
18.0/9.0	18.0	0.30±0.06	9.0	0.60±0.10	50
