DTL铜铝接线端子

Copper-Aluminium Connecting Terminals

产品应用：DTL铜铝接线端子适用于配电装置中各种圆型，半圆扇型铝线，电力电缆与电气设备铜端的过渡连接。使用铝材为L3，铜材为T2，产品采用摩擦焊工艺制造，具有焊缝强度高，通电性能好，抗电化腐蚀，使用寿命长等特点。。

Application：DTL series of copper-aluminium wiring terminals are suitable for transition connection of the circular aluminium wires, hemicycle-sector aluminium wires power supply cables in the distribution equipment and copper terminals of the electrical equipment. The material of aliminium and copper is that of L3 and T2 respectively. The technology of friction welding is wonderfully adopted. There fore they have distinguishing features of strong weld intensity, good nature in electrochemical, galvanic corrosion resistant and long service life.

产品分类

PRODUCT CLASSIFICATION

产品目录PDF

News Center

产品目录PDF下载

Adobe Reader PDF阅读器下载

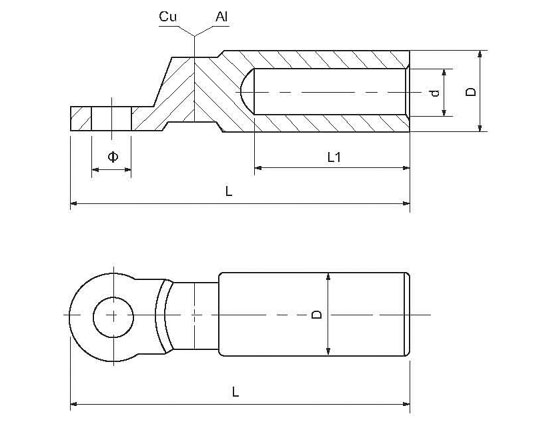

选型尺寸Product Dimensions：

Type	Φ	D	d	L	L1
DTL-2-16	13	16	5.5	87	42
DTL-2-25	13	16	6.5	87	42
DTL-2-35	13	16	8	87	42
DTL-2-50	13	16	9	87	43
DTL-2-70	13	16	11	87	43
DTL-2-95	13	16	12.5	87	43
DTL-2-120	13	16	13.5	111	60
DTL-2-150	13	16	15.5	111	60
DTL-2-185	13	16	17.5	116	60
DTL-2-240	13	16	19.5	116	60
DTL-2-300	13	16	22.5	120	62

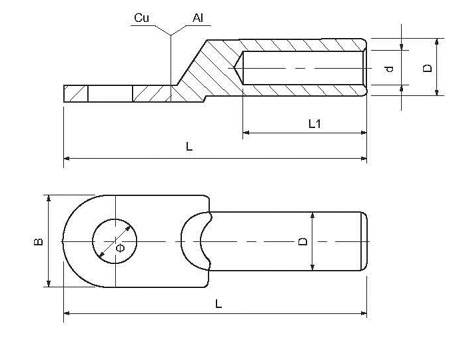

选型尺寸Product Dimensions：

Type	Φ	D	d	L	L1	B
DTL-1-10	8.5	10	6	68	28	16
DTL-1-16	8.5	10	6	70	30	16
DTL-1-25	8.5	10	7	75	34	18
DTL-1-35	10.5	10	8.5	85	38	20.5
DTL-1-50	10.5	10	9.8	90	40	23
DTL-1-70	12.5	10	11.5	102	48	26
DTL-1-95	12.5	10	13.5	112	50	28
DTL-1-120	14.5	10	15	120	53	30
DTL-1-150	14.5	10	16.5	126	56	34
DTL-1-185	16.5	10	18.5	133	58	37
DTL-1-240	16.5	10	21	140	60	40
DTL-1-300	21	10	23.5	160	65	50
DTL-1-400	21	10	27	170	70	50
DTL-1-500	21	10	29	225	75	60
DTL-1-630	--	10	35	245	80	80
DTL-1-800	--	60	38	270	90	100
